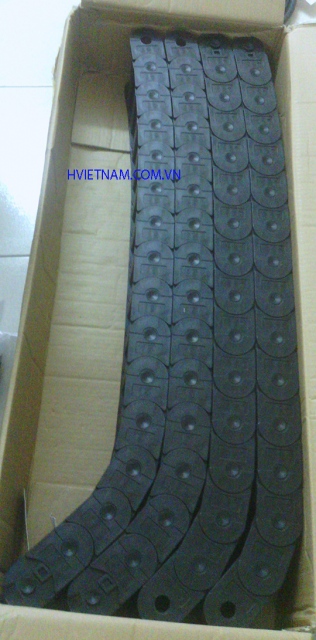

Xích nhựa cuốn cấp
Hãng sản xuất: Igus
Loại xích băng tải: xích nhựa
|
Series No. (Inner high) |
Inner high*width |
Outer high*width |
picth/ m |
Bending radius |
Opening way |
|
|
Mini series |
7 |
7*7 |
10*13 |
58 |
15 28 |
Bridge type non- opening |
|
10 |
10*6 |
|
|
18 28 38 |
||
|
10 |
10*10 |
15*16.5 |
66 |
|||
|
10 |
10*15 |
15*20 |
50 |
|||
|
10 |
10*15 |
15*20 |
50 |
Csemi-enclosed |
||
|
10 |
10*20 |
15*28.5 |
50 |
Bridge type non- opening |
||
|
10 |
10*20 |
15*28.5 |
50 |
Csemi-non opening |
||
|
15series |
15 |
15*20 |
20*28.5 |
50 |
28 38 48 |
Bridge type non- opening |
|
15 |
15*30 |
20*38.5 |
50 |
|||
|
15 |
15*40 |
20*48.5 |
50 |
|||
|
15 |
15*50 |
20*58.5 |
50 |
|||
|
15series Csemi- enclosed |
15 |
15*15 |
20*20 |
50 |
28 38 48 |
Csemi-enclosed interior opening |
|
15 |
15*20 |
20*28.5 |
50 |
|||
|
15 |
15*30 |
20*38.5 |
50 |
|||
|
15 |
15*40 |
20*48.5 |
50 |
|||
|
15 |
15*50 |
20*58.5 |
50 |
|||
|
18series |
18 |
18*25 |
23*36 |
30 |
38 48 60 75 100 |
Bridge type non- opening |
|
18 |
18*25 |
23*36 |
30 |
Bridge type exterior opening |
||
|
18 |
18*37 |
23*47 |
30 |
Bridge type non- opening |
||
|
18series Csemi- enclosed |
18 |
18*18 |
23*30 |
30 |
38 48 60 75 100 |
Csemi-enclosed interior opening |
|
18 |
18*25 |
23*36 |
30 |
|||
|
18 |
18*37 |
23*47 |
30 |
|||
|
18 |
18*50 |
23*62 |
30 |
|||
|
25series |
25 |
25*25 |
35*35 |
22 |
55 75 100 125 150 175 200 250 |
Bridge type open of both side |
|
25 |
25*38 |
35*51 |
22 |
|||
|
25 |
25*57 |
35*71 |
22 |
|||
|
25 |
25*77 |
35*91 |
22 |
|||
|
25series sealing |
25 |
25*25 |
35*35 |
22 |
55 75 100 125 150 175 200 250 |
sealing both side open |
|
25 |
25*38 |
35*51 |
22 |
|||
|
25 |
25*57 |
35*71 |
22 |
|||
|
25 |
25*77 |
35*91 |
22 |
|||
|
25series enhance |
25 |
N25*38 |
35*55 |
22 |
55 75 100 125 150 175 200 250 |
enhance opening type |
|
25 |
N25*57 |
35*74 |
22 |
|||
|
25 |
N25*77 |
35*94 |
22 |
|||
|
25 |
N25*103 |
40*120 |
22 |
|||
|
30series enhance |
30 |
N30*38 |
45*55 |
22 |
|
